1-3/4" x 2 Layers x 27 FT x 5400LBS Class 7 WSTDA-WS-1 Synthetic Webbing Sling | Premium Safe Hoisting Crane Sling (ASME/ANSI B30.9)

1-3/4" x 2 Layers x 27 FT x 5400LBS Class 7 WSTDA-WS-1 Synthetic Webbing Sling | Premium Safe Hoisting Crane Sling (ASME/ANSI B30.9)

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory







DAWSON — Lifting & Rigging, Engineered for Safety Worldwide.

Eye-eye Webbing Sling

Material: Polyester Nylon

Safety Factor: 5:1, 7:1

Length: As required

Working temperature range: -40℃-100℃

Standard: ASME B30.9 WSTDA-WS-1

We make these products according to ASME B30.9, WSTDA-WS-1, Customers could choice special length base on special require.

Double Ply Eye & Eye Webbing Sling Class 7

	Item	Webbing Width (inch)	Vertical	Choker	Vertical Basket	60 Basket	45 Basket	30 Basket	M.B.S.
			lbs	lbs	lbs	lbs	lbs	lbs	lbs
	DSWSEE-2-9010	1	3,100	2,480	6,200	5,370	4,384	3,100	15,500
	DSWSEE-2-9015	1 - 1/2	4,700	3,760	9,400	8,141	6,646	4,700	23,500
	DSWSEE-2-9017	1- 3/4	5,400	4,320	10,800	9,353	7,636	5,400	27,000
	DSWSEE-2-9020	2	6,200	4,960	12,400	10,739	8,767	6,200	31,000
	DSWSEE-2-9030	3	8,800	7,040	17,600	15,242	12,444	8,800	44,000
	DSWSEE-2-9040	4	11,000	8,800	22,000	19,052	15,554	11,000	55,000
	DSWSEE-2-9050	5	13,700	10,960	27,400	23,729	19,372	13,700	68,500
	DSWSEE-2-9080	6	16,500	13,200	33,000	28,578	23,331	16,500	82,500
	DSWSEE-2-9060	8	22,750	18,200	45,500	39,403	32,169	22,750	113,750
	DSWSEE-2-9100	10	28,400	22,720	56,800	49,189	40,158	28,400	142,000

Class 7 means rated loads are based on a stuffer weave construction webbing possessing a minimum certified tensile strength of 9,800 lbs/inch width

Lifting method and maximum safety working load parameter(from 2 ply eye-eye webbing sling)

Welcome to buy the newest and competitive price DAWSON  Synthetic Webbing Sling (ASME / ANSI B30.9), WSTDA-WS-1 Flat Crane Lifting Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com

1 TON WEBBING SLINGS, 2 TON WEBBING SLINGS, 3 TON WEBBING SLINGS, 4 TON WEBBING SLINGS, 5 TON WEBBING SLINGS, 6 TON WEBBING SLINGS, 8 TON WEBBING SLINGS, 10 TON WEBBING SLINGS, 12 TON WEBBING SLINGS, 16 TON WEBBING SLINGS, 20 TON WEBBING SLINGS, 30 TON WEBBING SLINGS, 40 TON WEBBING SLINGS, 50 TON WEBBING SLINGS, 60 TON WEBBING SLINGS, 100 TON WEBBING SLINGS

1T WEBBING SLINGS, 2T WEBBING SLINGS, 3T WEBBING SLINGS, 4T WEBBING SLINGS, 5T WEBBING SLINGS, 6T WEBBING SLINGS, 8T WEBBING SLINGS, 10T WEBBING SLINGS, 12T WEBBING SLINGS, 16T WEBBING SLINGS, 20T WEBBING SLINGS, 30T WEBBING SLINGS, 40T WEBBING SLINGS, 50T WEBBING SLINGS, 60T WEBBING SLINGS, 100T WEBBING SLINGS

1000KG WEBBING SLINGS, 2000KG WEBBING SLINGS, 3000KG WEBBING SLINGS, 4000KG WEBBING SLINGS, 5000KG WEBBING SLINGS, 6000KG WEBBING SLINGS, 8000KG WEBBING SLINGS, 10000KG WEBBING SLINGS, 12000KG WEBBING SLINGS, 16000KG WEBBING SLINGS, 20000KG WEBBING SLINGS, 30000KG WEBBING SLINGS, 40000KG WEBBING SLINGS, 50000KG WEBBING SLINGS, 60000KG WEBBING SLINGS, 100000KG WEBBING SLINGS

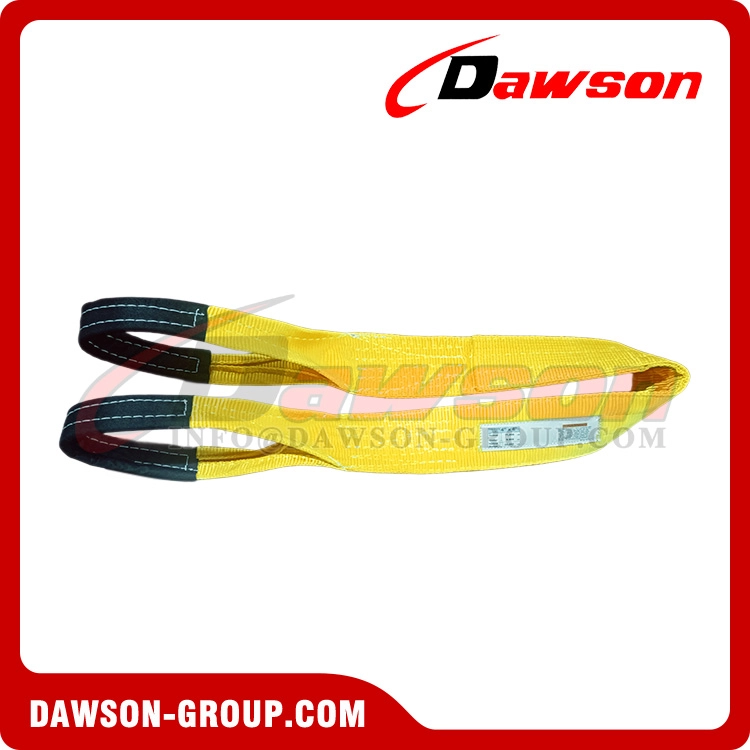

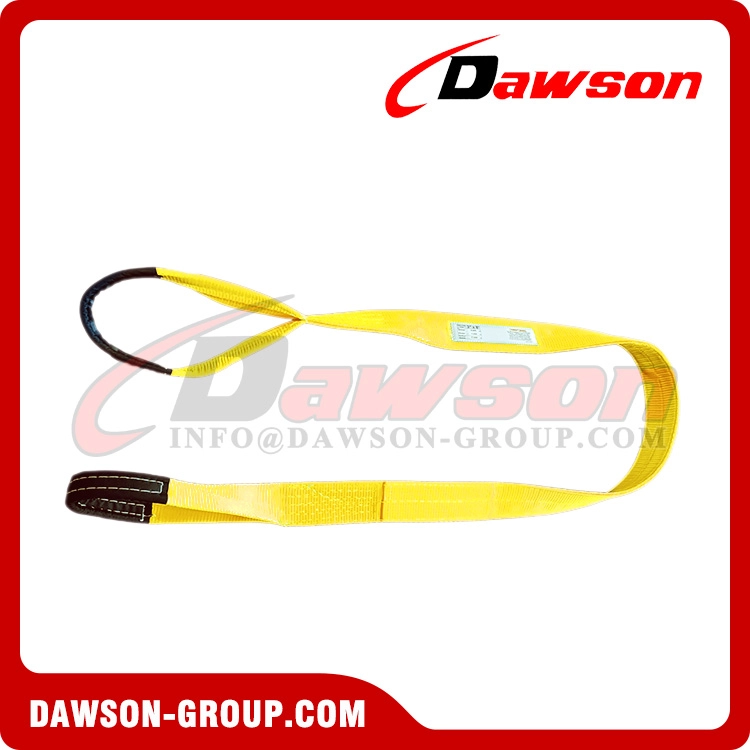

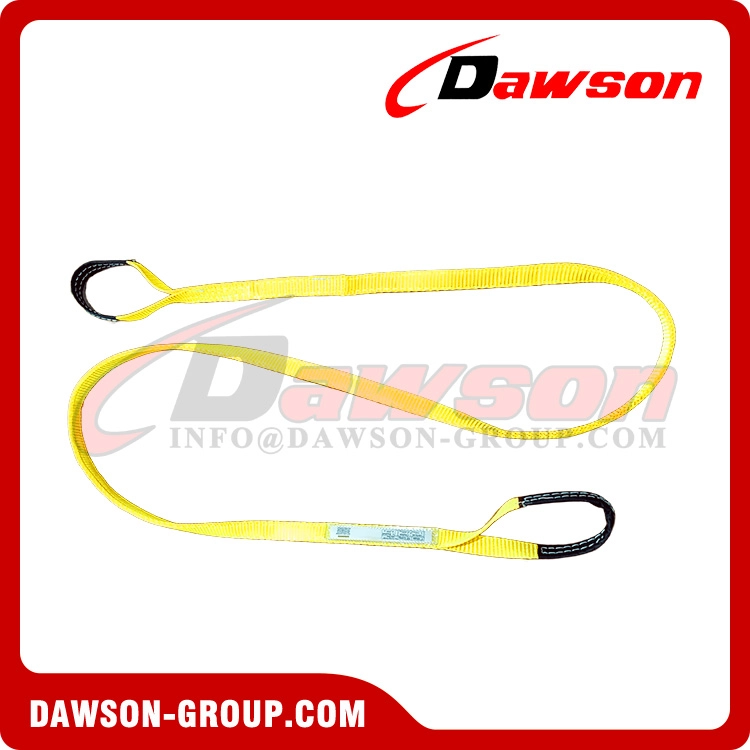

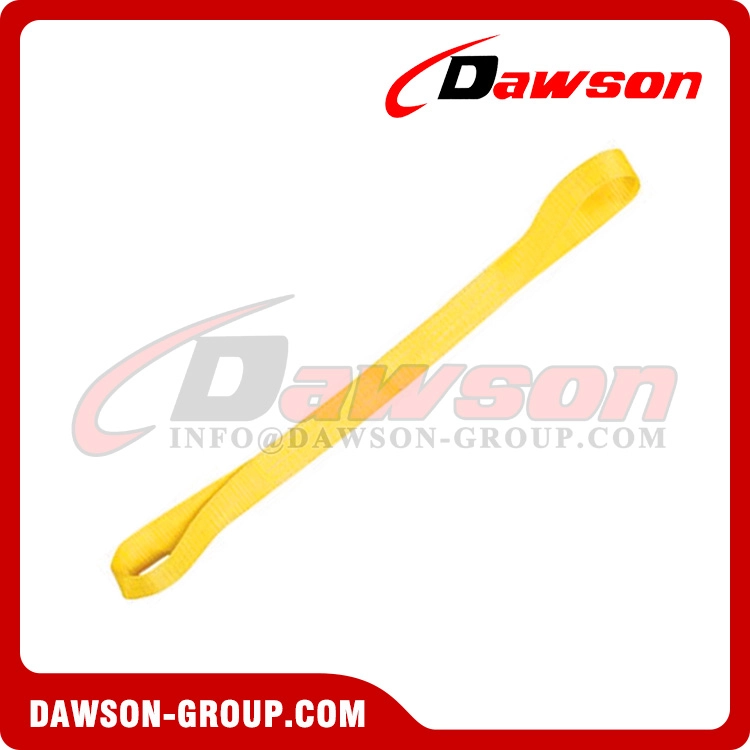

1.Products Show:

Hot Tags: Class 7 Synthetic Webbing Sling,ASME/ANSI B30.9 Webbing Sling,1-3/4" x 2 Layers x 27 FT x 5400LBS Flat Lifting Sling,2-Ply Webbing Sling,WSTDA-WS-1 Synthetic Web Sling,Flat Crane Lifting Sling,Heavy Duty Webbing Sling,Polyester Webbing Sling,Flat Web Sling,Rigging Sling

2.Other related products:

3.DAWSON Testing Center:

4.About DAWSON:
