1.Product Overview

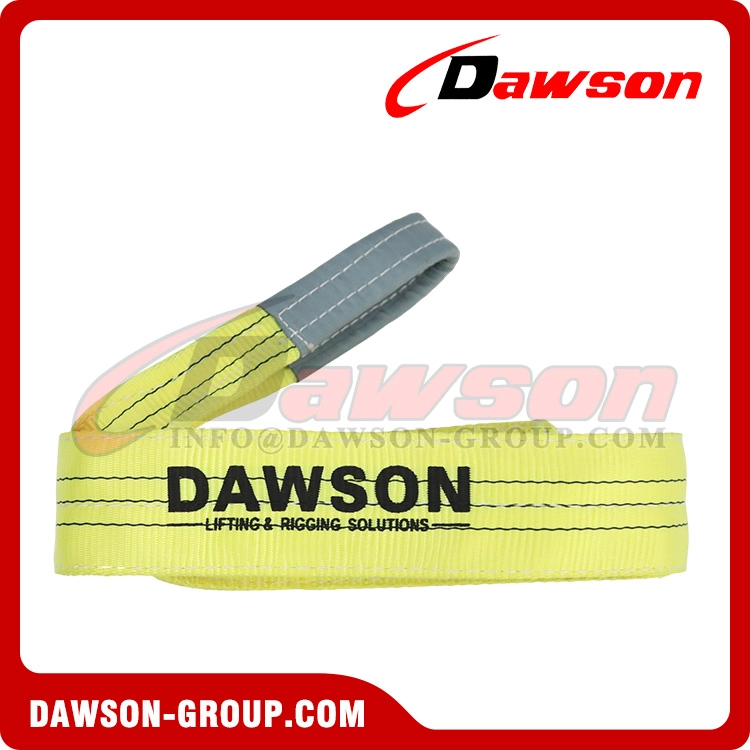

The DAWSON 3 Ton 1 M Polyester Flat Webbing Lifting Sling is engineered for heavy-duty industrial lifting and rigging applications. Manufactured from 100% high-tenacity polyester, this sling delivers superior tensile strength, outstanding abrasion resistance, and low elongation under load. Fully compliant with AS 1353 standards, it guarantees maximum safety and stable performance for all lifting operations.
2.Key Features & Benefits
Premium Material: Constructed with high-density polyester webbing, featuring an excellent strength-to-weight ratio, plus great resistance to UV radiation and mildew.
Certified Safety: Compliant with AS 1353, meeting recognized safety standards for flat lifting webbing slings.
Standard Color Coding: Each sling features industry-standard color coding, enabling on-site workers to instantly recognize the working load limit.
Surface Protection: Soft flexible fabric prevents scratches, dents and surface damage to polished, coated or fragile workpieces.
Damage Warning Design: Built-in black warning threads will expose once the sling is overloaded, worn or torn for timely safety inspection.
3.Technical Specifications Working Load Limit (WLL): 3 Ton (3000 kg) Working Length:1 M (1 Meter)
Raw Material: 100% High-tenacity Polyester Webbing
Compliance Standard: AS 1353
Safety Factor: 7:1 - Safety Factor of 6:1 or 5:1 is available upon request
4.Type
A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.
B.Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling
5.Application Scope
Industrial crane lifting, construction engineering hoisting, warehouse cargo handling, machinery equipment installation, logistics container transport, shipyard rigging, workshop heavy goods moving.
 | Item | Color coded
according to
AS 1353 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling |
Straight
lift | Choked
lift |  |
Straight
lift up to
45 | Choked
lift up to
45 | Straight
lift
45-60 | Choked
lift
45-60 |
| 0-7 | 7-45 | 45-60 |
 |  |  |  |  |  |  |  |  |
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 |
| DSWSDP-201 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 800 |
| DSWSDP-202 | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 |
| DSWSDP-203 | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 |
| DSWSDP-204 | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 |
| DSWSDP-205 | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 |
| DSWSDP-206 | WLL 6T | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 8,400 | 6,720 | 6,000 | 4,800 |
| DSWSDP-208 | WLL8T | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 12,000 | 8,960 | 8,000 | 6,400 |
| DSWSDP-210 | WLL10T | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 14,000 | 11,200 | 10,000 | 8,000 |
| DSWSDP-212 | WLL 12T | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 16,800 | 13,440 | 12,000 | 9,600 |
Custom lengths and WLL are available to perfectly match your specific lifting and rigging applications.
Welcome to buy the newest and competitive price DAWSON WLL 3 Ton 1 M Polyester Webbing Slings - Lifting Slings AS 1353 from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.info@dawson-group.com
Products Show:
