Material: polyester Nylon
Minimum Safety Factor:5:1
Length: The minimum length is 3ft
Color: Color code
Working temperature range:-40℃-100℃
Standard: ASME B30.9

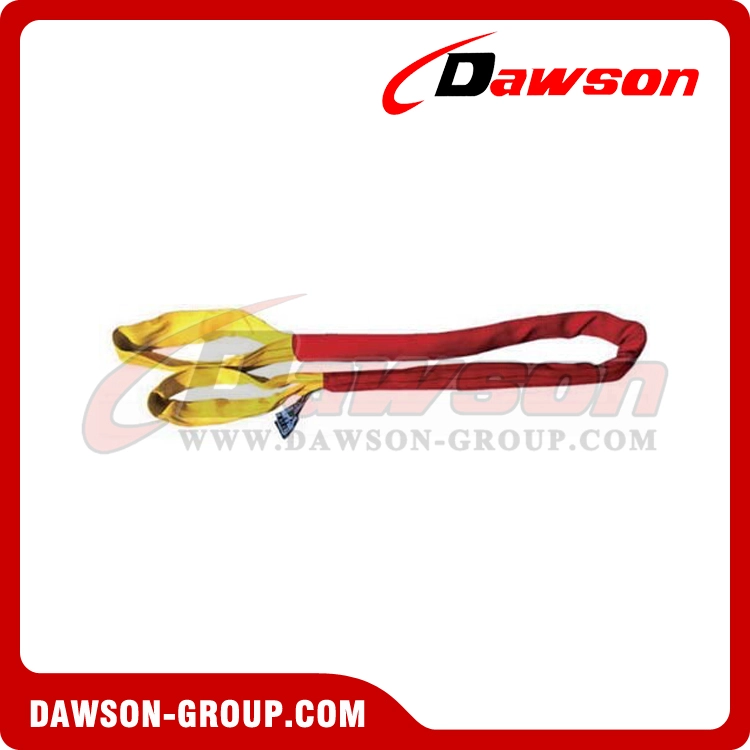

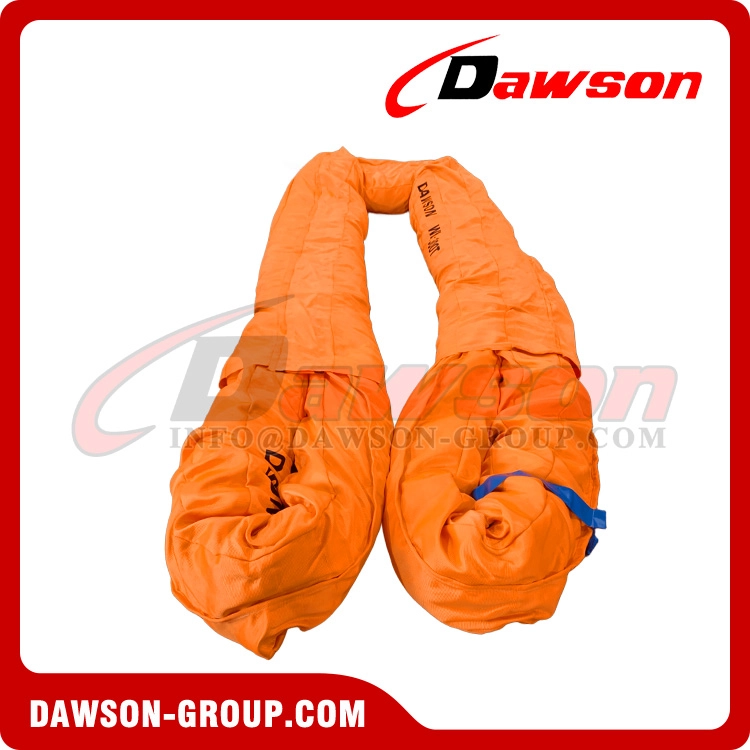

Eye & Eye Round Lifting Sling is a more rugged and durable polyester round lifting sling with the advantage of an additional abrasion-resistant jacket covering the body of standard round lifting sling, forming two color-coded lifting eyes.
PROTECTIVE SLEEVE
Type A Type A Type B Type B

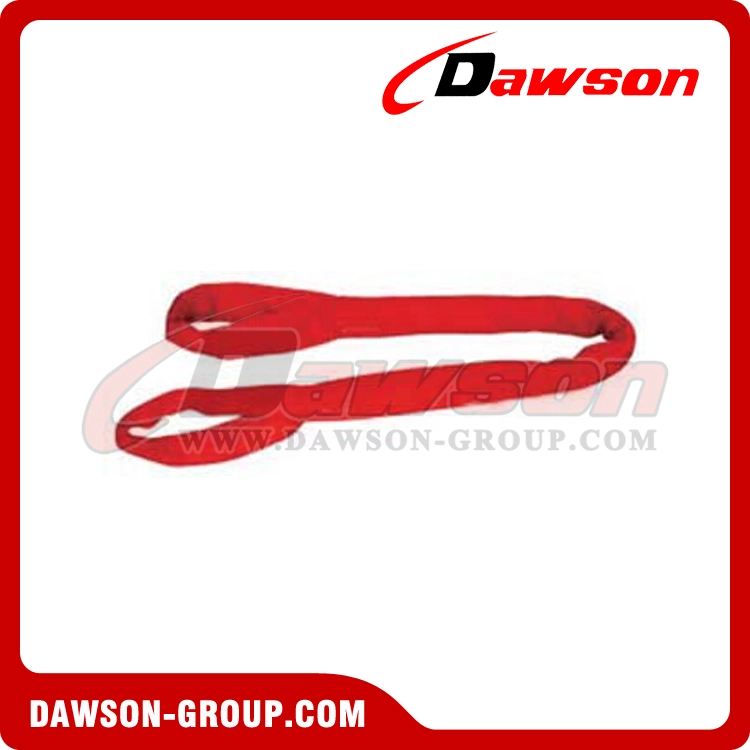

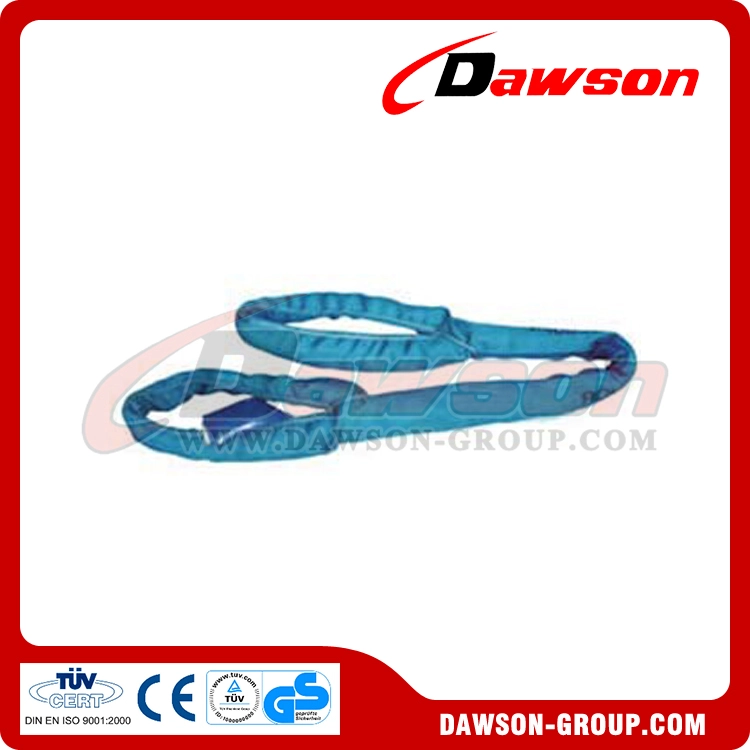

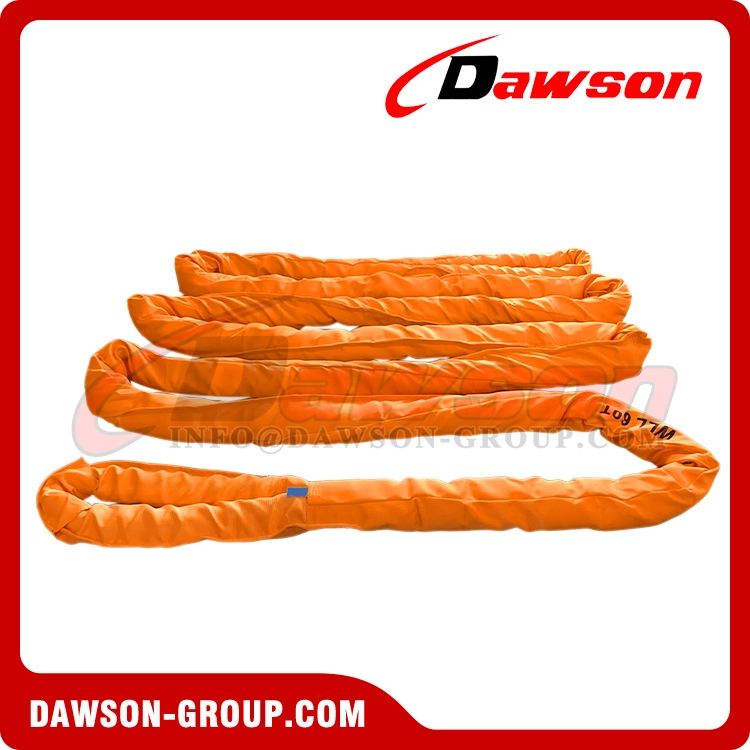

Round slingis an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.
Manufactured to EN 1492-2, conforming to the CE GS,ISO4878, ASME B30.9.
Safety Factor 7:1
Black stripes stitched to indicate working load limit: 1 stripe per ton.
Multiple large imprints of Workin Load Limit on outer jacket.
Sealed in plastic bag with Test Certificate after production.
CE declaration of conformity available upon request.
1. Color, in according with international standard, to validate sling capacity.
2. Special thickness sleeves and special technical to add using life.
3. Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4. Clearly print WLL and length on surface of sling.
5. Change-bearing point to add using life.
6. If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate
to decide if the sling is taken away from service or not.
7. 100% polyester has less than 3% extension at rated capacity, and will return originally length, and 9-12% extension at break.
8.Clearly tag with serial number and a copy of certificate together with one sling.
9. Working temperature range: -40 -100
Advice for use:
1.Failure to comply with this warning may result in serious load damage and death or injury.
2.Use only if trained.
3.Can fail if damaged, misused or overloaded.
4.Inspect sling for damage before each use.
5.Always protect sling webbing from sharp edges of load.
6.Do not attempt to use sling above rated lifting capacity.
7.Do not use sling if rated capacity tag is removed or unreadable.
8.Avoid acid, alkali and sunlight.
9.Do not tie knots in sling webbing as strength is greatly reduced.
10.Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.
11.Consult sling load chart for basket hitch capacity reduction due to sling angle.
12.Do not try to repair sling by yourself.
Other sizes can be produced upon request, more information, please contact us:info@dawson-group.com
