WLL 20 Ton 10m CE Approved Lifting Sling Webbing Belt Polyester Color Code Slings for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
1.Product Overview
The DAWSON 20 Ton 10 M Polyester Flat Webbing Lifting Sling is engineered for heavy-duty industrial lifting and rigging applications. Manufactured from 100% high-tenacity polyester, this sling delivers superior tensile strength, outstanding abrasion resistance, and low elongation under load. Fully compliant with CE EN 1492-1 standards, it guarantees maximum safety and stable performance for all lifting operations.
2.Key Features & Benefits
Premium Material: Constructed with high-density polyester webbing, featuring an excellent strength-to-weight ratio, plus great resistance to UV radiation and mildew.
Authoritative Safety Certification: Passed CE EN 1492-1 certification, fully meeting international safety requirements for flat lifting webbing slings.
Standard Color Coding: Each sling features industry-standard color coding, enabling on-site workers to instantly recognize the working load limit.
Surface Protection: Soft flexible fabric prevents scratches, dents and surface damage to polished, coated or fragile workpieces.
Damage Warning Design: Built-in black warning threads will expose once the sling is overloaded, worn or torn for timely safety inspection.
3.Technical Specifications
Working Load Limit (WLL): 20 Ton (20000 kg) Working Length:10 M (10 Meter)
Raw Material: 100% High-tenacity Polyester Webbing
Compliance Standard: EN 1492-1
Safety Factor: 7:1 - Safety Factor of 6:1 or 5:1 is available upon request
4.Type
A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.
B.Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling
5.Application Scope
Industrial crane lifting, construction engineering hoisting, warehouse cargo handling, machinery equipment installation, logistics container transport, shipyard rigging, workshop heavy goods moving.
 | Item | Color coded
according to
EN
1492-1 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling |
Straight
lift | Choked
lift |  |
Straight
lift up to
45 | Choked
lift up to
45 | Straight
lift
45-60 | Choked
lift
45-60 |
| 0-7 | 7-45 | 45-60 |
 |  |  |  |  |  |  |  |  |
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 |
| DSWSDP-201 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 800 |
| DSWSDP-202 | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 |
| DSWSDP-203 | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 |
| DSWSDP-204 | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 |
| DSWSDP-205 | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 |
| DSWSDP-206 | WLL 6T | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 8,400 | 6,720 | 6,000 | 4,800 |
| DSWSDP-208 | WLL8T | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 12,000 | 8,960 | 8,000 | 6,400 |
| DSWSDP-210 | WLL10T | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 14,000 | 11,200 | 10,000 | 8,000 |
| DSWSDP-212 | WLL 12T | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 16,800 | 13,440 | 12,000 | 9,600 |
Custom lengths and WLL are available to perfectly match your specific lifting and rigging applications.
Welcome to buy the newest and competitive price DAWSON WLL 20 Ton 10 M Polyester Webbing Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.info@dawson-group.com

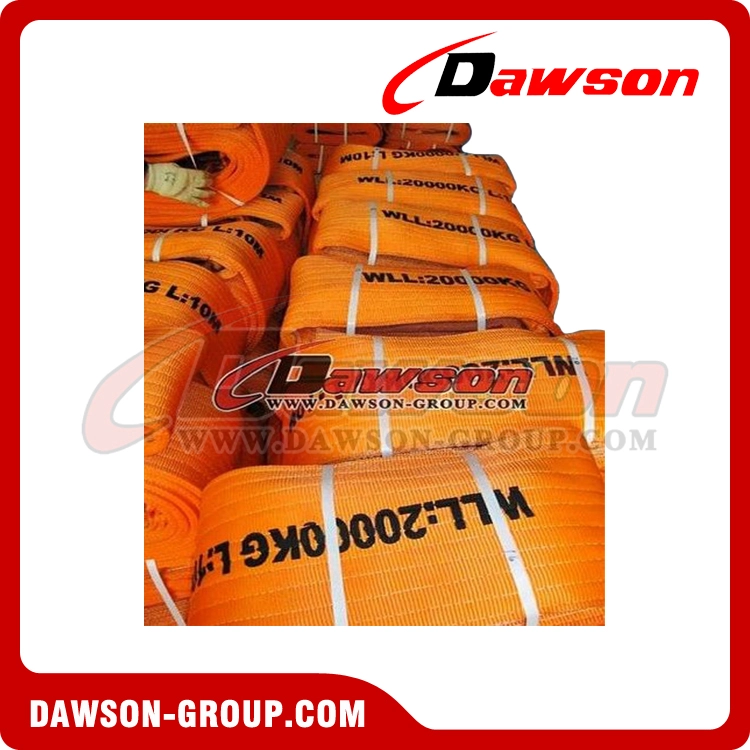

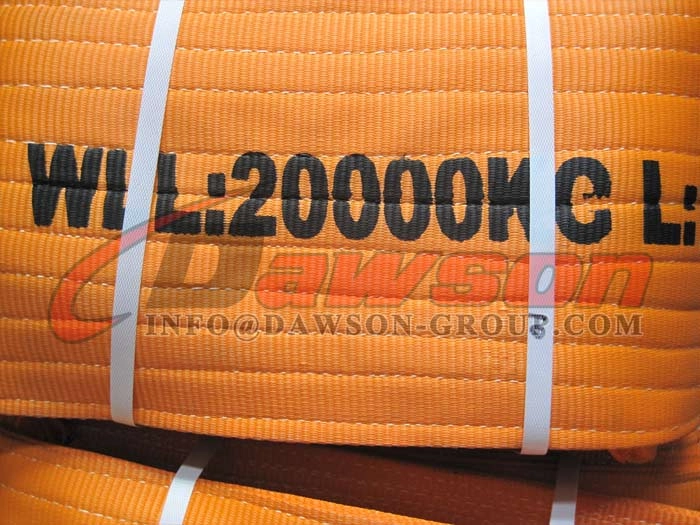

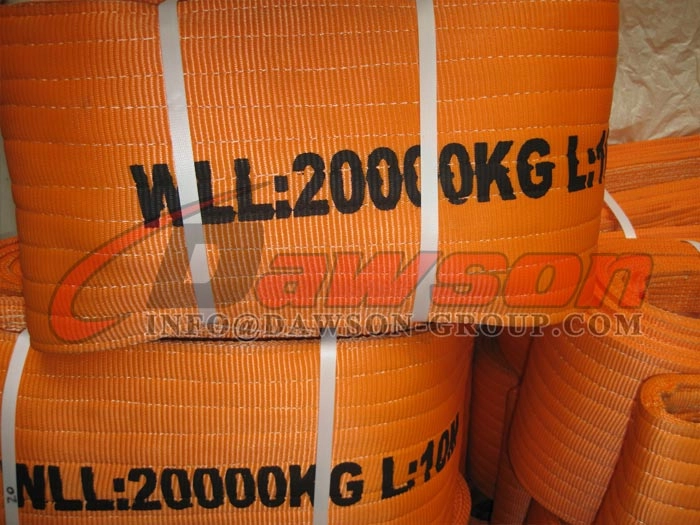

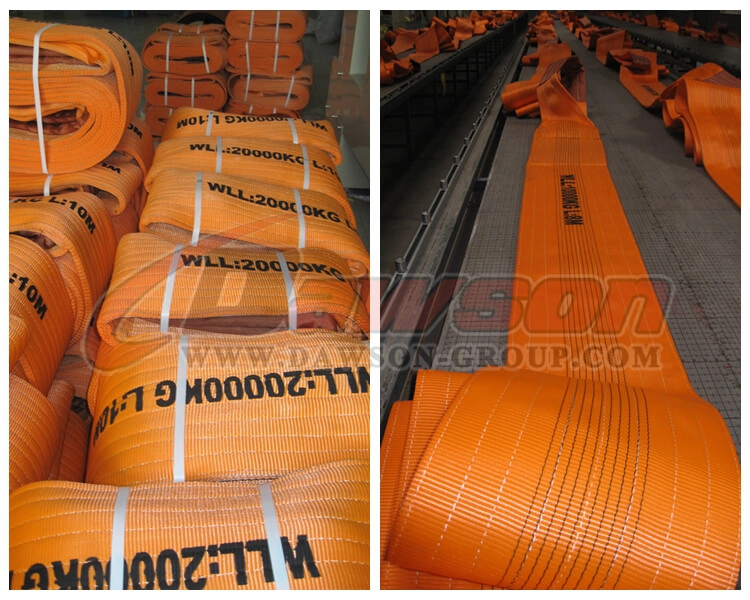

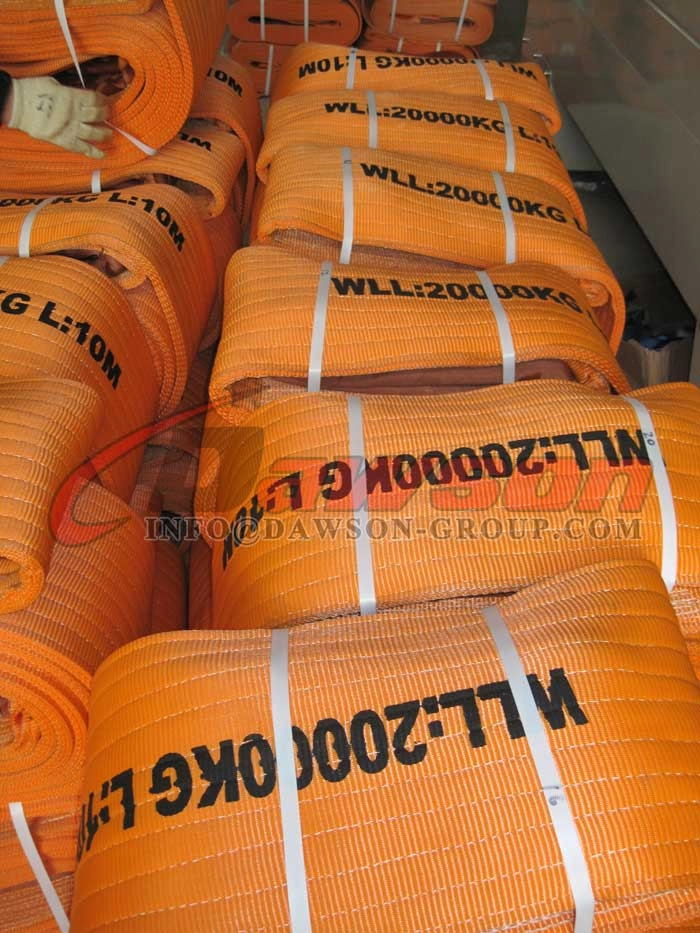

Products Show:
